RANGE OF PRODUCTS

Indirect
Ophthalmoscope LED
Indirect
Ophthalmoscope LED & Camera
Streak Retinoscope
(RX-3A)
Streak Retinoscope
(RX-RC)
Halogen Ophthalmoscope
(BX α-13A)

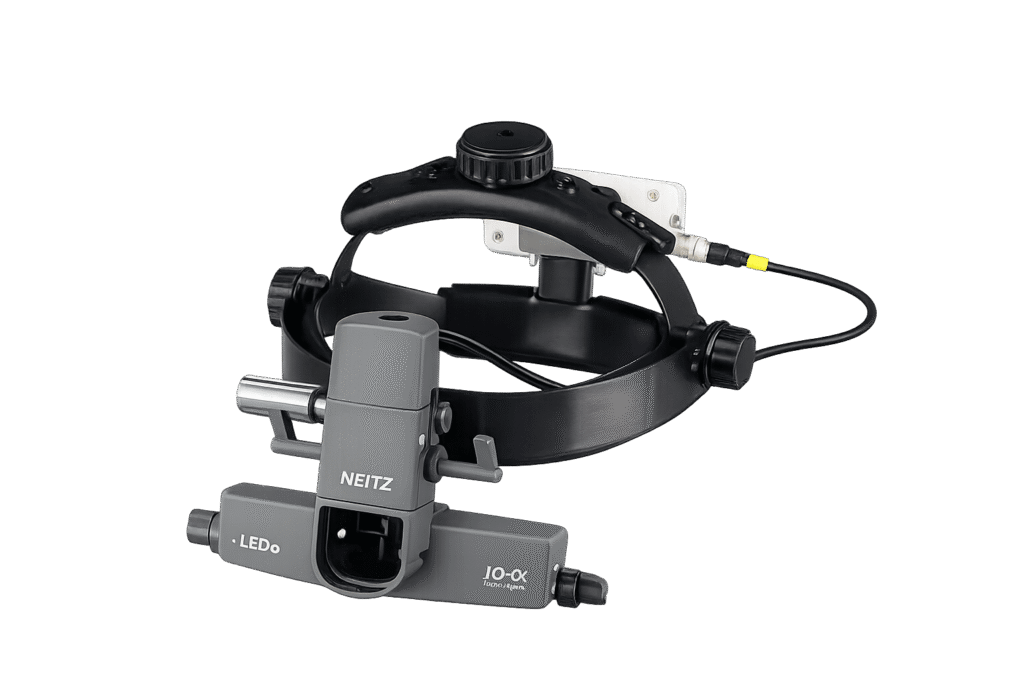

IO- a LED
NEITZ pursues Comfort and Flexibility.
  • The Neitz LED light source delivers clean illumination with a halogen bulb–like color while eliminating filament shadow.
  • Designed for reliability, the LED provides steady illumination for up to 50,000 hours without the need for bulb replacement.
  • Combined with a powerful rechargeable battery, the system enables up to 10 hours of continuous lighting at medium intensity.

Specifications

  • Pupillary Distance: 54mm to 74mm
  • Illumination Area : $19mm, $50mm,
    $80mm (at the distance of 500mm)
  • Filters: UV, Blue, Red-Free
  • Light Source: 3W White LED
  • Dimensions: 164 x 111.5 x 58 mm
    (excluding headband)
  • Weight: 480g
ENQUIRE
Catalogue
IO- a LED Camera
Mobile USB B-Scan
  • The highly sensitive FHD camera system equipped with the latest CMOS image sensor
    provides clear and high-definition images while reducing image degradation.
  • Suitable for observation of pediatric fundus with retinal diseases such as
    retinopathy of prematurity.
  • The original Neitz capture software maximises the usability in displaying and
    saving the fundus images.

Specifications

  • Pupillary Distance: 54mm to 74mm
  • Illumination Area: 19mm, 50mm,
  • 80mm (at the distance of 500mm)
  • Filters: UV, Blue, Red-Free
  • Light Source: 3W White LED
  • Dimensions: Approx. 164 x 116.5 x 102.5mm (excluding headband)
  • Weight: 730g
ENQUIRE
Catalogue

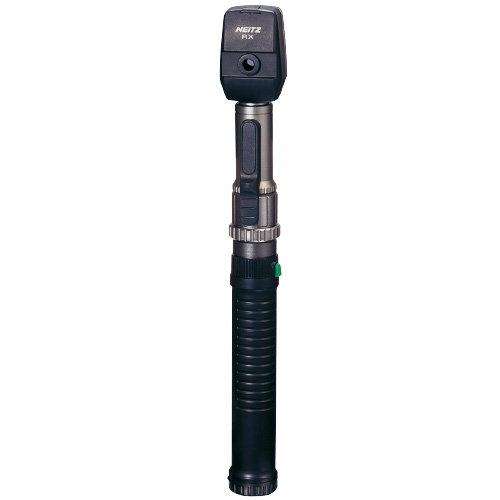

Streak Retinoscope RX-3A
  • To be used with AA cell batteries (2pcs.)
  • Contents:
    RX head AA cell battery handle
    + 2D presbyopic lens
  • Bulb:
    3V. IW (L-28)
ENQUIRE
Catalogue

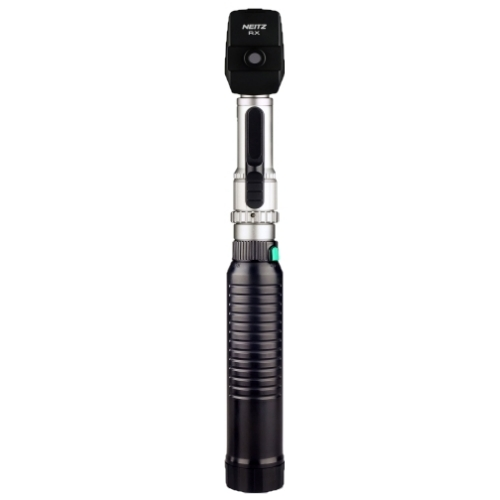

Streak Retinoscope RX-RC
  • Contents:
    RX head, re-chargeable battery handle (1pcs.)
    + 2D presbyopic lens
  • Bulb:
    4V, 2.6W (L-27)
  • Two RC handles can be charged at the same time.
ENQUIRE
Catalogue

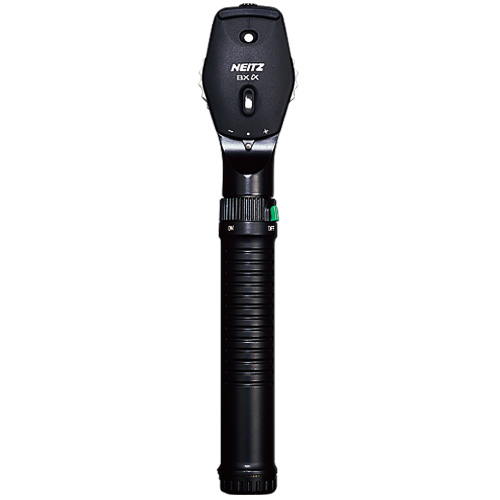

Halogen Ophthalmoscope
BX α-13A
  • Used with AA cell battery handle.
  • Contents:
    • Halogen Ophthalmoscope BXα head
    • AA cell battery handle.
  • Bulb: Model No. L-30 (3V, 2W)
ENQUIRE
Catalogue

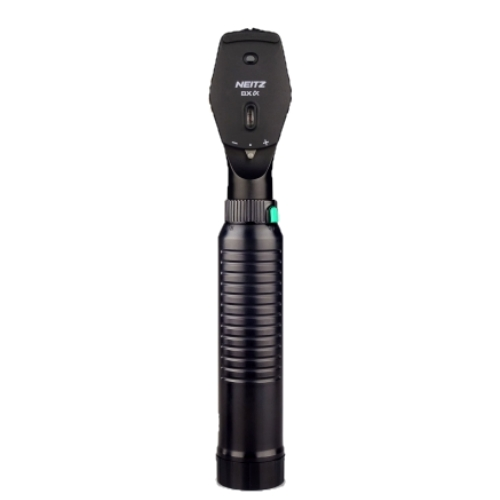

Halogen Ophthalmoscope
BX α-RC
  • Used with rechargeable battery
  • Brightness is twice as great as the battery operated model.
  • Rechargeable with Dual Desk Charger RC-II
  • Contents:
    • Halogen Ophthalmoscope BXα head
    • Rechargeable battery handle
  • Bulb: Model No. L-29 (4V, 3W)
  • Rechargeable Battery: Model No. 1000RS
    Recharger: Dual Desk Charger RC-II (120V or 230V)
ENQUIRE
Catalogue
